How to Choose Restriction Enzymes for Cloning: Designing Restriction Sites to Maximize Cloning Success

Restriction Enzyme Selection · Cloning Strategy Guide

For researchers new to molecular cloning, choosing restriction enzymes is often one of the first design challenges encountered when constructing an expression vector.

Common questions include:

• Why is EcoRI/XhoI preferred over EcoRI/EcoRI?
• With dozens of restriction sites available in a vector, how do you decide which ones to use?
• What if my gene of interest already contains an EcoRI recognition site?
• Why did my His tag, FLAG tag, or GFP fusion disappear after cloning?

Although these problems usually become apparent during the experiment, they are almost always the result of design decisions made much earlier.

Restriction enzymes are among the most widely used tools in molecular cloning. Choosing appropriate restriction sites is critical not only for successful digestion and ligation, but also for downstream transformation, clone verification, and recombinant protein expression.

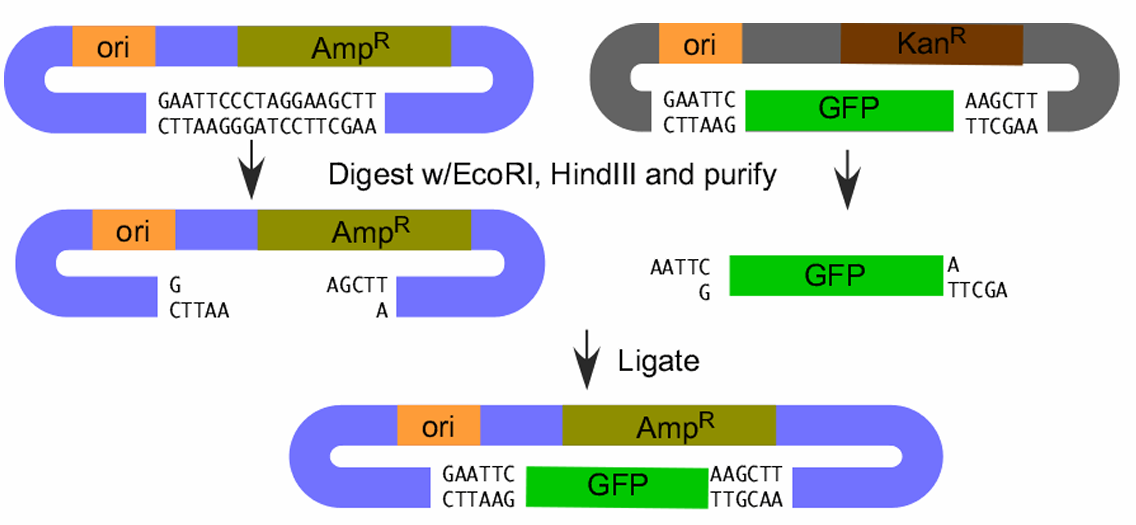

Simplified workflow of traditional restriction enzyme-mediated subcloning (placeholder)

In this article, we'll walk through the key considerations for selecting restriction enzymes and highlight several design principles that can substantially improve cloning efficiency and reduce troubleshooting later in the workflow.

What Are Restriction Enzymes?

Restriction enzymes (restriction endonucleases) are enzymes that recognize specific DNA sequences and cleave double-stranded DNA at or near those sites.

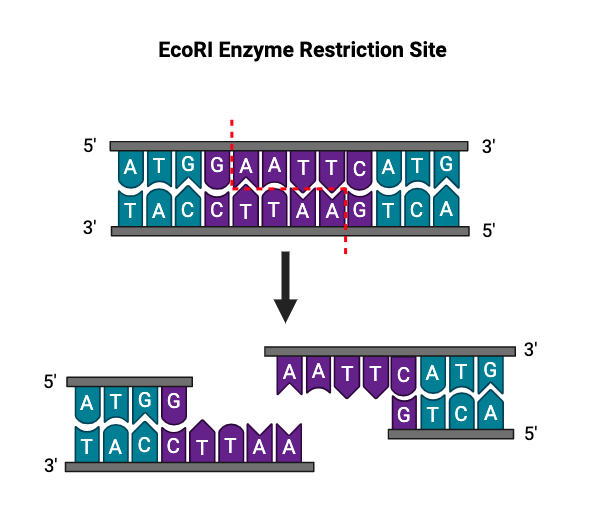

For example, the widely used restriction enzyme EcoRI recognizes the sequence:

When this sequence is present in a DNA molecule, EcoRI cleaves the DNA to generate sticky (cohesive) ends.

Different restriction enzymes recognize different DNA sequences and generate different types of DNA termini.

Together, these enzymes serve as the fundamental "molecular scissors" of recombinant DNA technology.

Step 1. Start with the Multiple Cloning Site (MCS)

A common mistake among beginners is selecting a familiar restriction enzyme before examining the vector itself.

Instead, the first step should always be to inspect the multiple cloning site (MCS).

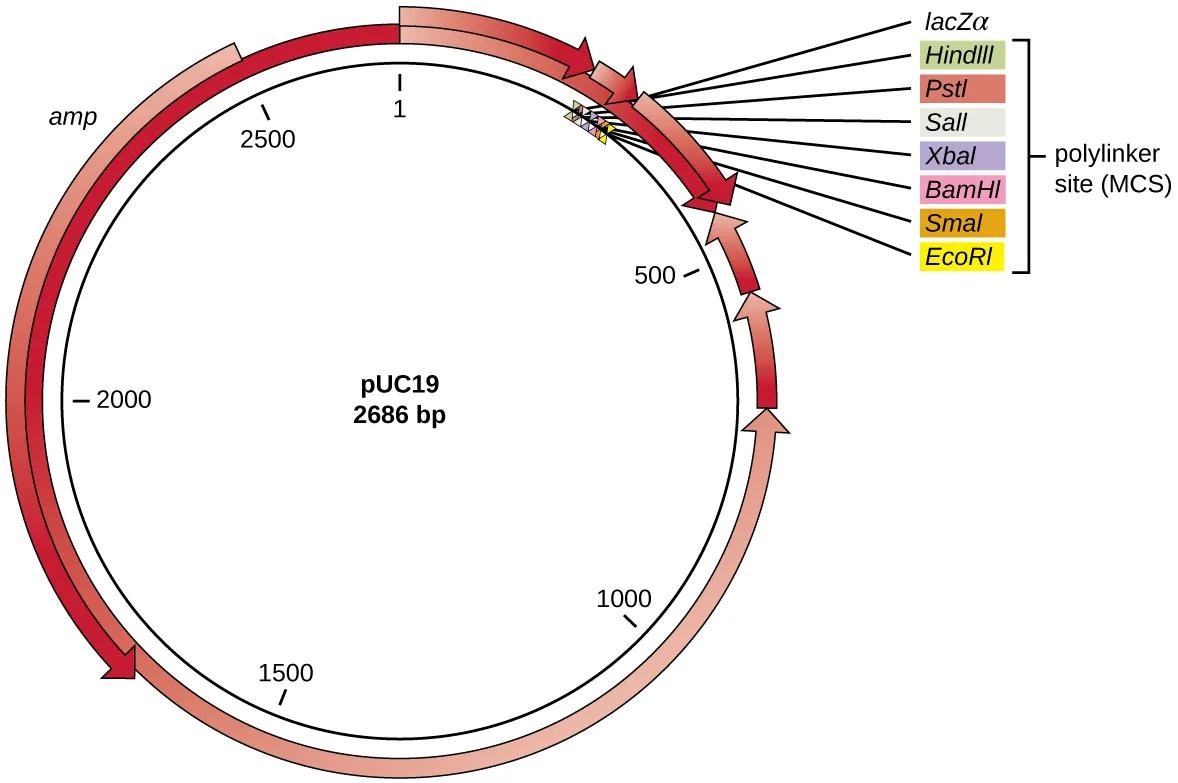

The MCS is a short synthetic DNA region engineered into the vector that contains multiple unique restriction enzyme recognition sites, allowing convenient insertion of foreign DNA.

A typical MCS may include:

• EcoRI
• BamHI
• XhoI
• HindIII
• NotI
• NheI
• AgeI
• KpnI

These sites are generally present only once within the vector, making them ideal for cloning applications.

Whenever possible, choose restriction sites located within the MCS that occur only once in the entire plasmid to avoid unwanted cleavage elsewhere in the vector.

Step 2. Check Whether Your Insert Contains the Same Restriction Site

Suppose your gene of interest already contains an EcoRI recognition sequence (GAATTC).

If you digest the PCR product with EcoRI, the insert itself will also be cleaved, splitting the gene into two fragments and preventing successful cloning.

For this reason, always analyze the insert sequence before selecting restriction enzymes.

Several commonly used software packages can automatically identify restriction sites in both vectors and inserts, including:

• SnapGene
• Benchling
• Geneious
• Serial Cloner

These tools greatly simplify restriction enzyme selection by displaying all recognition sites and helping identify compatible enzyme pairs.

Step 3. Why Is Double Digestion Preferred Over a Single Enzyme?

A common question is:

"If EcoRI cuts the vector, why not simply use EcoRI at both ends?"

The answer lies in cloning directionality.

When identical restriction sites are used at both ends of the insert and vector, ligation can produce several unwanted outcomes, including:

• Correct orientation
• Reverse orientation
• Vector self-ligation

As a result, only a fraction of colonies contain the desired construct, requiring extensive screening.

Even when ligation is successful, an insert cloned in the reverse orientation often cannot be expressed correctly.

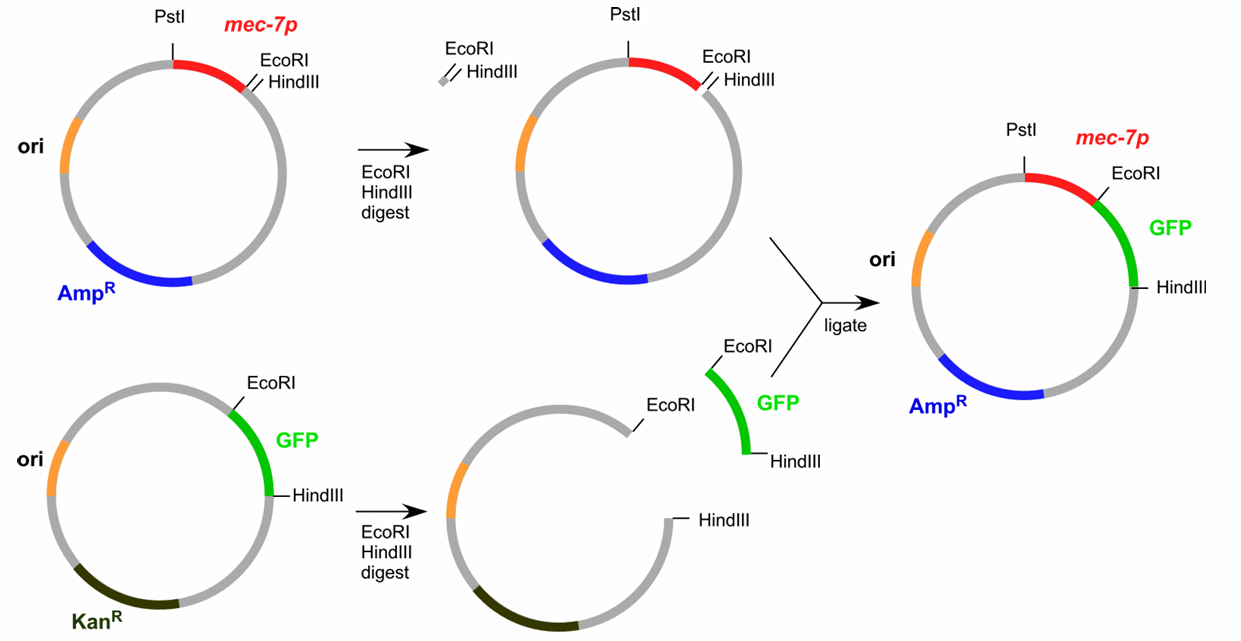

Instead, most expression cloning strategies use two different restriction enzymes, such as:

Because the two sticky ends are different, the insert can ligate into the vector in only one orientation.

This strategy, known as directional cloning, dramatically increases the proportion of correctly assembled clones.

Step 4. Why Are Sticky Ends Preferred?

Restriction enzymes generate one of two types of DNA termini:

• Sticky (cohesive) ends
• Blunt ends

Sticky ends contain complementary single-stranded overhangs that can transiently anneal through base pairing before being sealed by DNA ligase.

Compared with blunt ends, sticky-end cloning generally offers:

• Higher ligation efficiency
• Greater cloning accuracy
• Improved directional cloning when two different enzymes are used
• Reduced vector self-ligation and lower empty-vector background

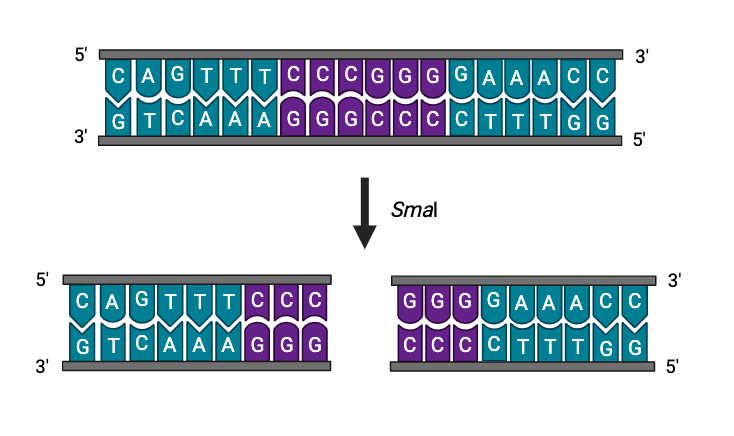

Blunt-end cloning, by contrast, lacks complementary overhangs and depends entirely on random ligation by DNA ligase.

Consequently, blunt-end cloning typically results in:

• Lower ligation efficiency
• Random insert orientation
• Higher frequencies of empty vector colonies

Unless experimental constraints require blunt-end cloning, sticky-end restriction enzymes remain the preferred choice for routine expression vector construction.

Step 5. Always Verify the Reading Frame

Successfully inserting a DNA fragment does not necessarily guarantee successful protein expression.

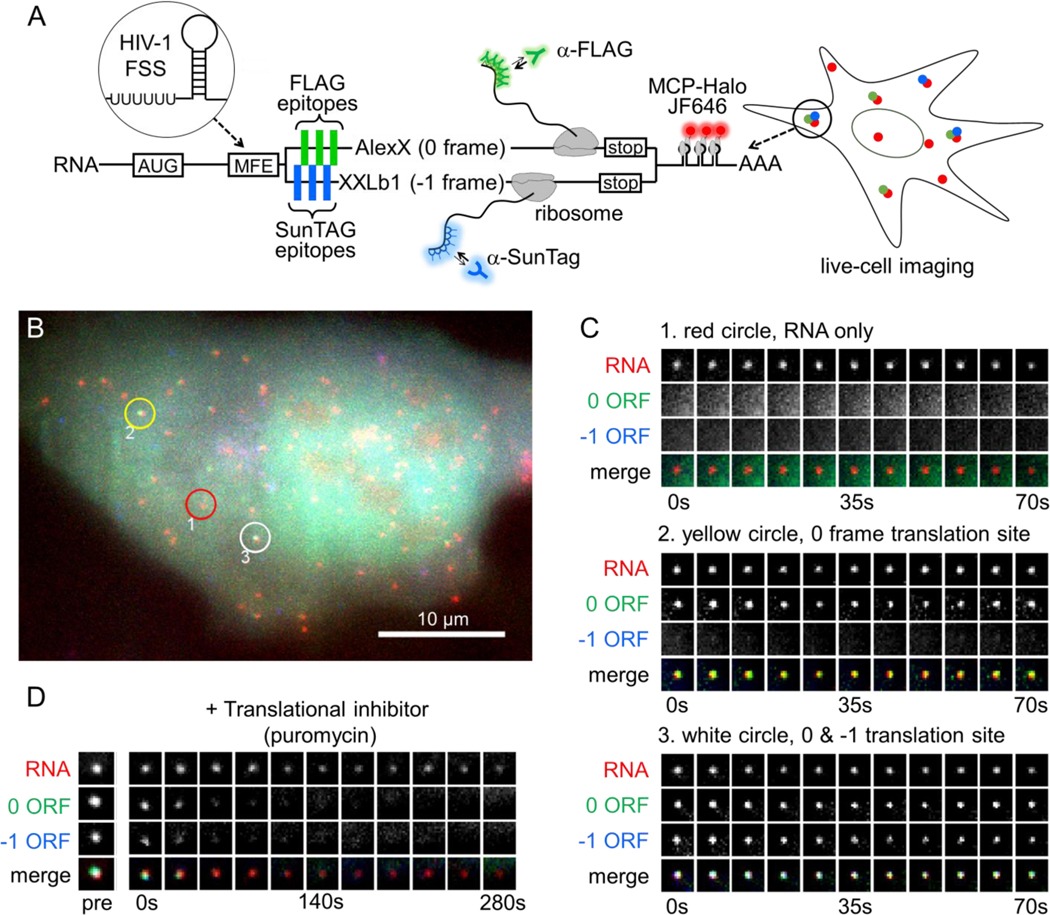

If the expression vector includes fusion tags such as His, FLAG, HA, Myc, or GFP, the insert must remain in the correct reading frame relative to the tag.

Even a single nucleotide insertion or deletion can shift the open reading frame (ORF), resulting in a frameshift mutation.

Possible consequences include:

• Loss of tag expression
• Premature stop codons
• Truncated proteins
• Complete loss of protein function

Before ordering primers, it is good practice to simulate the cloning strategy in software such as SnapGene or Benchling and verify that the start codon (ATG), fusion tag, coding sequence, and stop codon all remain in the same reading frame.

Step 6. Not Every Pair of Restriction Enzymes Works Well Together

Many failed double-digestion experiments are caused not by poor DNA quality, but by incompatible enzyme reaction conditions.

Different restriction enzymes often require different buffer compositions, salt concentrations, or optimal reaction temperatures.

If two enzymes cannot maintain high activity under the same conditions, sequential digestion may be necessary, increasing experimental time and the risk of DNA loss.

When selecting enzyme pairs for double digestion, consider whether the enzymes:

• Are fully active in the same reaction buffer
• Share the same optimal incubation temperature (typically 37°C)
• Are recommended for simultaneous double digestion

Most enzyme manufacturers provide compatibility charts, and several online tools allow rapid comparison of reaction conditions before experiments begin.

Conclusion

Restriction enzyme selection and restriction site design are among the most fundamental aspects of molecular cloning, yet they are also among the easiest to overlook.

A well-designed cloning strategy can significantly improve cloning efficiency while minimizing common problems such as vector self-ligation, incorrect insert orientation, empty-vector colonies, and reading-frame errors. Careful planning at the design stage ultimately lays the foundation for reliable recombinant protein expression and downstream functional studies.

Although seamless cloning technologies—including Gibson Assembly, In-Fusion Cloning, and Golden Gate Assembly—have become increasingly popular, traditional restriction enzyme-based cloning remains one of the most widely used molecular cloning methods because of its simplicity, low cost, robustness, and broad applicability across life science laboratories.
